Autel Robotics Dragonfish VTOL Tilt-Rotor Long-Endurance Flying Wing Aircraft w/ Multiple Payload Options

DJI Mavic Mini 2 – Fly-More-Combo
QYSEA Fifish V6 Underwater ROV
0 out of 5
( There are no reviews yet. )

-

  • 120 Minutes Maximum Endurance on single flight
  • Multiple Payloads Available
  • 18.6 Miles (30KM) Maximum Video Transmission
  • 67 MPH (108KM/H) Maximum Speed
  • IP43 Rating – Resists Rain & Poor Weather
  • Level 6 Wind Resistance Rating
  • -4~131°F (-20~55°C) Operating Temperature Range
  • 14763FT (4500M) Maximum Flight Altitude
  • 3.3LGS(1.5KG) Maxium Payload
  • 19685 FT (6000M) Service Ceiling
  • Ready to Fly in less than 5 Minutes
  • 1 CM +1 PPM GPS Positioning Accuracy
Categories: ,

Description

***New Product – Coming Soon!  Reach out to us to be put on the waiting list for purchase or for additional information.  Please note:  Purchase price and availability will be announced shortly.***

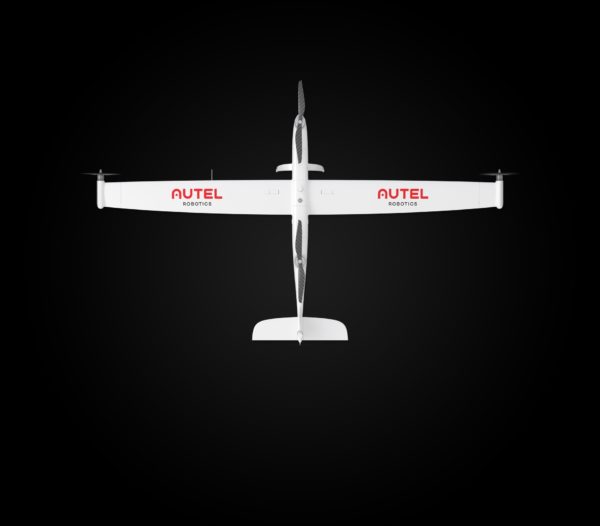

DRAGONFISH

Move Beyond Convention, Command the Future

SUPER LONG ENDURANCE
4K OPTICAL ZOOM

The Dragonfish’s unique tilt rotor design simplifies operation and maximizes performance and efficiency. With no complicated moving parts, the dragonfish is modular, waterproof, smart and reliable. The Dragonfish is mission ready right out of the box and includes powerful AI tracking capabilities and a multitude of modular payload options. An endurance of 120 mins (including payload) further augments the Dragonfish’s robust mission capabilities and pushes it significantly ahead against other VTOL competition.

  • 120 MINUTE
    ENDURANCE
  • 3 MINUTE
    QUICK ASSEMBLY
  • 4K 20X
    STABILIZED OPTICAL ZOOM
  • 2000M
    INFRARED DETECTION RANGE
  • 18.6 MILE (30KM)
    MAX VIDEO TRANSMISSION RANGE
  • 5 SECOND
    SYSTEM BOOT AND SELF CHECK

INTELLIGENCE AND AUTONOMY

The Dragonfish comes with a variety of automated functions to streamline and simplify mission tasks. Advanced algorithms add an additional of layer of consistency and simplicity for the user workflow.

  • AI high speed tracking
  • Point of interest
  • Adaptive Tracking
  • Advanced Mission planning

SAFETY AND REDUNDANCY

INTERCHANGEABLE PAYLOAD SYSTEM

The Dragonfish comes with a variety of payload options that can be changed rapidly to suit mission needs or to offer future expandability and versatility

Third Party Payloads
Autel’s Payload SDK (PSDK) allows third party users to develop unique payload solutions quickly and efficiently for different mission scenarios and applications.

APPLICATIONS

The Dragonfish’s powerful platform and modular payload options gives it the flexibility to excel in a wide range of applications

  • Public Safety

  • Fire Fighting and Prevention

  • Energy

  • Traffic Monitoring and Management

  • Coastal Overwatch and Security

  • Agriculture

RTK

RTK MODULE

The Dragonfish is equipped with 2 RTK modules for additional redundancy. By integrating the GNSS Base Station with the RTK modules, the Dragonfish can achieve centimeter accuracy, precise headings and strong anti-magnetic interference capabilities. These modules back up one another and greatly improves the quality of image metadata for photogrammetry and increases flight precision and safety.

Autel Robotics’ GNSS Base Station provides centimeter accuracy and supports all 4 major satellite systems

PROFESSIONAL SOFTWARE SOLUTIONS

Autel Voyager

Autel Voyager is specifically designed for the dragonfish for industry specific applications. The software provides advanced mission planning, intelligent tracking, flight history tracking, and other autonomous features. Simple to use yet incredibly powerful, Autel Voyager is the one stop solution for every mission.

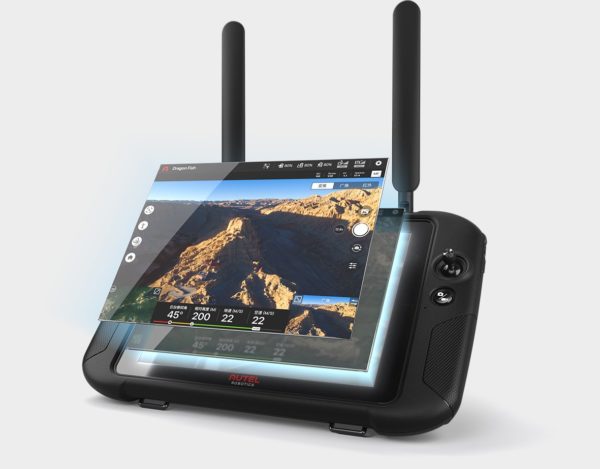

9.7″1000NIT ultra-bright Ground Control Station

The high resolution (2048*1536), 9.7 inches, ultra-bright (1000 nits) TFT-LCD touchscreen ensures maximum visibility and practicality in all situations.
Autel Ground Control Station is water, dust, and water resistant. Autel Robotics’ new antenna design allows the video transmission to reach up to 18.6 miles (30km)
The Autel Robotics ground station controller has a battery life of up to 4.5 hours and can be operated indefinitely with a remote power source

COMPACT AND PORTABLE

The Dragonfish can be easily disassembled by a one man team and will fit in the back of typical car trunks. The entire system can be assembled without tools and is ready to fly in less than 5 minutes.

The Dragonfish’s fuselage is highly modular for easy packing and repair

The entire system self-checks in 5 seconds upon startup and is ready to fly immediately after

Tool-Free Quick Release Propellers

TECHNICAL SPECIFICATIONS

  • 120 MIN ENDURANCE (WITH STANDARD PAYLOAD)
  • 18.6 MILES (30KM) VIDEO TRANSMISSION
  • 67 MPH (108KM/H) MAX SPEED
  • IP43 RATING SYSTEM
  • 17.2LB (7.8) TAKEOFF WEIGHT
  • LEVEL 6 WIND RESISTANCE
  • -4~131°F (-20~55°C) OPERATING TEMPERATURE
  • 14763FT (4500M) HIGHEST TRANSITION ALTITUDE
  • 3.3LGS(1.5KG) MAX PAYLOAD
  • 19685 FT (6000M) SERVICE CEILING
  • 5 MINUTES ASSEMBLED AND READY TO FLY
  • 1 CM +1 PPM POSITIONING ACCURACY
