DJI Mavic Air 2S

$999.00

-

  • 1-Inch CMOS Sensor
  • 5.4K Video
  • MasterShots
  • 12km 1080p Transmission
  • Obstacle Sensing in 4 Directions
Availability: Out of stock SKU: 190021036574 Categories: , ,

Description

DJI Air 2S

Take a Closer Look

Large 1-inch Sensor Size

Equipped with a 1-inch image sensor and large 2.4um pixels, DJI Air 2S is capable of 5.4K/30fps and 4K/60fps video.  Capture any moment

with the rich clarity and authentic color tones it deserves.

Turn On the Night

Capture the allure of the world, even as it darkens. Thanks to a high dynamic range, high resolution, and accurate color reproduction,

even low-light scenes are sharp and vibrant.

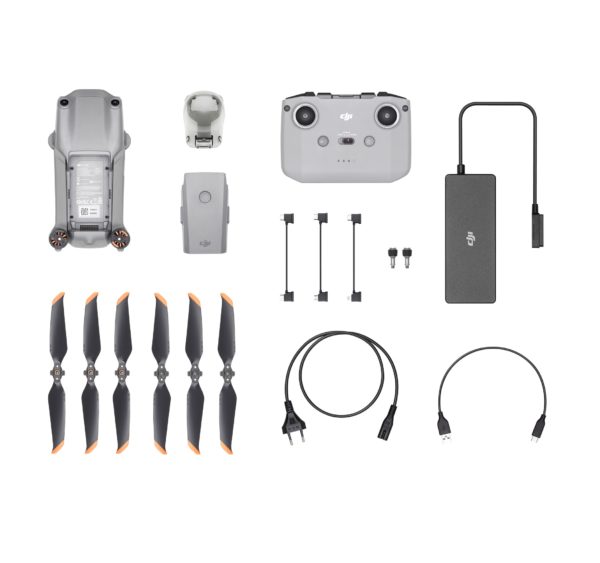

In The Box:



DJI Air 2S

Aircraft

  • Takeoff Weight

  • 595 g
  • Dimensions

  • Folded:
    180×97×77 mm (length×width×height)
    Unfolded:
    183×253×77 mm (length×width×height)
  • Diagonal Length

  • 302 mm
  • Max Ascent Speed

  • 6 m/s (S Mode)
    6 m/s (N Mode)
  • Max Descent Speed

  • 6 m/s (S Mode)
    6 m/s (N Mode)
  • Max Service Ceiling Above Sea Level

  • 5000 m
  • Max Flight Time (no wind)

  • 31 minutes
  • Max Hovering Time (no wind)

  • 30 minutes
  • Max Flight Distance (no wind)

  • 18.5 km
  • Max Flight Speed (near sea level, no wind)

  • 19 m/s (S Mode)
    15 m/s (N Mode)
    5 m/s (C Mode)
  • Max Wind Speed Resistance

  • 10.7 m/s
  • Max Tilt Angle

  • 35° (S Mode)
    Front: 30°, Back: 20°, Left: 35°, Right: 35° (N Mode)
  • Max Angular Velocity

  • 250°/s (S Mode)
    90°/s (N Mode)
    60°/s (C Mode)
  • Operating Temperature Range

  • 0° to 40°C (32° to 104°F)
  • Operating Frequency

  • 2.4 GHz
    5.8 GHz
  • Transmission Power (EIRP)

  • 2.4 GHz:
    FCC: ≤30 dBm
    CE: ≤20 dBm
    SRRC: ≤20 dBm
    MIC: ≤20 dBm
    5.8 GHz:
    FCC: ≤30 dBm
    CE: ≤14 dBm
    SRRC: ≤29 dBm
  • Hovering Accuracy Range

  • Vertical:
    ± 0.1 m (with vision positioning)
    ± 0.5 m (with GNSS positioning)
    Horizontal:
    ± 0.1 m (with vision positioning)
    ± 1.5 m (with GNSS positioning)
  • Propellers

  • Quick release, low noise, folding
  • Aircraft Arms

  • Foldable
  • GNSS

  • GPS+GLONASS+GALILEO
  • Compass

  • Single Compass
  • IMU

  • Single IMU
  • Internal Storage

  • 8 GB

Intelligent Flight Battery

  • Capacity

  • 3500 mAh
  • Voltage

  • 11.55 V
  • Max Charging Voltage

  • 13.2 V
  • Battery Type

  • LiPo 3S
  • Energy

  • 40.42 Wh
  • Weight

  • 198 g
  • Charging Temperature Range

  • 5° to 40°C (41° to 104°F)
  • Max Charging Power

  • 38 W
  • Built-in Battery

  • N/A

Camera

  • Sensor

  • 1″ CMOS
    Effective Pixels: 20 MP; 2.4μm Pixel Size
  • Lens

  • FOV: 88°
    35 mm Format Equivalent: 22 mm
    Aperture: f/2.8
    Shooting Range: 0.6 m to ∞
  • ISO Range

  • Video:
    100-3200 (Auto)
    100-6400 (Manual)
    10-Bit Dlog-M Video:
    100-800 (Auto)
    100-1600 (Manual)
    Photo:
    100-3200 (Auto)
    100-12800 (Manual)
  • Still Image Size

  • 20 MP
    5472×3648 (3:2)
    5472×3078 (16:9)
  • Still Photography Modes

  • Single shot: 20 MP
    Burst shooting: 20 MP (continuous burst)
    Auto Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV bias
    Timed: 20 MP, 2/3/5/7/10/15/20/30/60s
    SmartPhoto (including HDR and HyperLight): 20 MP
    HDR Panorama:
    Vertical (3×1): 3328×8000 (width×height)
    Wide-angle (3×3): 8000×6144 (width×height)
    180° (3×7): 8192×3500 (width×height)
    Sphere (3×8+1): 8192×4096 (width×height)
    JPEG/DNG (RAW)
  • Video Resolution

  • 5.4K: 5472×3078 @ 24/25/30 fps
    4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps
    2.7K: 2688×1512 @ 24/25/30/48/50/60 fps
    FHD: 1920×1080 @ 24/25/30/48/50/60/120 fps
    MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
  • Max Video Bitrate

  • 150 Mbps
  • Supported File System

  • FAT32/exFAT
    Supports a microSD card with a capacity of up to 256 GB.
  • Digital Zoom

  • Zoom recording is not available while recording 10-bit videos and 120fps videos.
    4K/30fps:
    4x;
    2.7K/60fps:
    4x;
    2.7K/30fps:
    6x;
    1080p/60fps:
    6x;
    1080p/30fps:
    8x

Gimbal

  • Stabilization

  • 3-axis (tilt, roll, pan)
  • Mechanical Range

  • Tilt: -135° to 45°
    Roll: -45° to 45°
    Pan: -100° to 100°
  • Pan Axis

  • Not Controllable
  • Controllable Range

  • Tilt: -90° to 0°(default); -90° to 24° (extended)
  • Max Controllable Speed (tilt)

  • 100°/s
  • Angular Vibration Range

  • ±0.01°

Sensing System

  • Forward

  • Precision Measurement Range: 0.38-23.8 m
    Effective Sensing Speed: ≤15 m/s
    Field of View (FOV): 72° (horizontal), 58° (vertical)
  • Backward

  • Precision Measurement Range: 0.37-23.4 m
    Effective Sensing Speed: ≤12 m/s
    Field of View (FOV): 57° (horizontal), 44° (vertical)
  • Downward

  • ToF Measurement Range: 0.1-8 m
    Hovering Range: 0.5-30 m
    Vision Sensor Hovering Range: 0.5-60 m
  • Left/Right

  • N/A
  • Upward

  • Precision Measurement Range: 0.34-28.6 m
    Field of View (FOV): 63° (horizontal), 78° (vertical)
  • Downward Auxiliary Light

  • Single LED

Video Transmission

  • Transmission System

  • O3
    2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0)
    4-antenna 2T4R
  • Max Transmission Distance

  • 12 km (FCC), 8 km (CE)
    8 km (SRRC), 8 km (MIC)
  • Live View Quality/Latency

  • Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms
    Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms
  • Max Transmission Bitrate

  • 44 Mbps (download bitrate)
    16 Mbps (live video bitrate)
  • Operating Frequency

  • 2.4 GHz
    5.8 GHz

Remote Controller

  • Multiple Controllers

  • N/A
  • DJI Smart Controller

  • Supported
  • Remote Controller Transmission System

  • OcuSync 2.0
  • Battery Life

  • 6 hours (4 hours when charging a mobile device)
  • Supported Mobile Device Connectors

  • Lightning, Micro USB, USB-C
  • Max Supported Mobile Device Size

  • 180×86×10 mm (length×width×height)
  • Operating Temperature

  • -10° to 40°C (14° to 104°F)
  • Transmitter Power (EIRP)

  • 2.4 GHz:
    FCC: ≤26 dBm
    CE: ≤20 dBm
    SRRC: ≤20 dBm
    MIC: ≤20 dBm
    5.8 GHz:
    FCC: ≤26 dBm
    CE: ≤14 dBm
    SRRC: ≤26 dBm

Charger

  • Charging Input

  • 100-240V, 50/60 Hz, 1.3 A
  • Charging Output

  • Charging Port: 13.2 V⎓2.82 A
    USB Port: 5 V⎓2 A
  • Voltage

  • 13.2 V
  • Rated Power

  • 38 W
