CHASING USBL Kit

$499.00

-

*Requires use with Cerulean sonar, docking station and adapter box or control console

Compatible with:

  • Chasing M2 Pro
  • Chasing M2 Pro Max
Availability: Available on backorder SKU: 843722100708 Categories: ,
View cart

Description

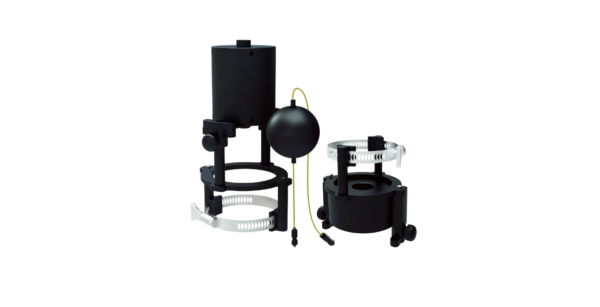

CHASING USBL Kit

The CHASING USBL kit is a set of connecting parts designed for mounting the Cerulean Sonar on CHASING ROVs. The USBL underwater locator can accurately get the position, navigation direction and trajectory of the ROV on the map, as well as mark the location of the target and map the inspection route.



Accurately Orient the Underwater Location

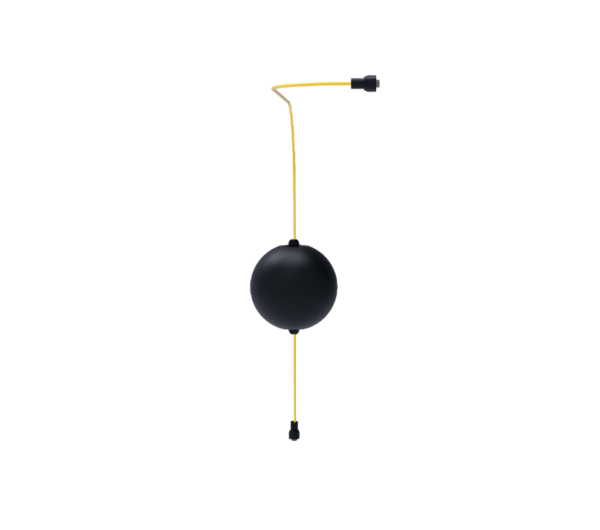

The USBL underwater locator uses the transmitter and receiver to calculate the coordinate position of the underwater drone through the locating algorithm with three points, and displays the ROV’s loacation on map on the APP in real time. The maximum distance between transmitter and receiver can be up to 300 meters.

Accurately Orient the Underwater Location

The USBL underwater locator uses the transmitter and receiver to calculate the coordinate position of the underwater drone through the locating algorithm with three points, and displays the ROV’s loacation on map on the APP in real time. The maximum distance between transmitter and receiver can be up to 300 meters.

In the box



Specifications

  • Dimensions of the Transmitter Bracket : 127 mm × 106 mm
  • Weight of the Transmitter Bracket : 194 g
  • Dimensions of the Receiver Component : 127 mm × 106 mm (bracket), 100 mm × 72 mm (control cabin)
  • Weight of the Receiver Component : 134 g (bracket), 249 g (control cabin)
  • Operating Depth of the Control Cabin : 1 to 1.5 m
  • Operating Temperature : -10°C-45°C
