Description

High-Brightness Touch Scree

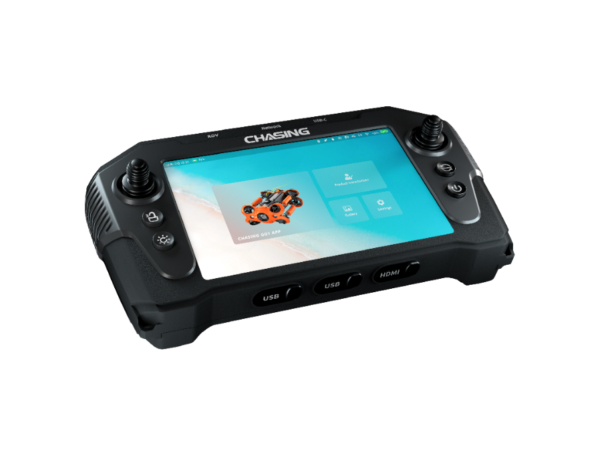

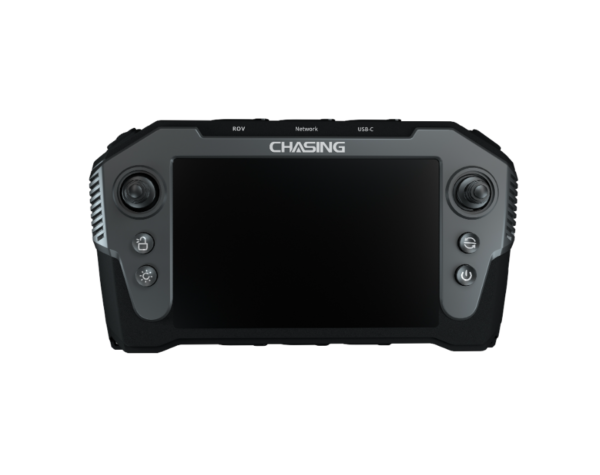

CHASING Waterproof Remote Controller with Screen is provided with a 7-inch touch screen with a brightness maximally up to 700nit.



5-Point Industrial Touch Design

The touch screen adopts 5-point industrial touch design, which is easy to operate and responsive. The remote controller is equipped with a light shield, making the screen still clear under the direct sunlight.

IP65 Waterproof Rating

CHASING Waterproof Remote Controller with Screen has IP65 waterproof rating, sustainable in short-light rain, moderate rain, and seawater splash causing by waves.

Multiple Uncomplicated Shortcut Keys to Achieve Human-Computer Integration

The remote controller has 6 uncomplicated shortcut keys. The new spring-based control sticks are used with screen-side keys and wavy wheel to flexibly adjust the floodlight brightness, complete underwater motions, switch the photo/video mode, and perform other shortcut actions. The multi-functional key is used to switch the right lever to control the ROV horizontal rolling angle / the grabber arm to achieve human-machine integration and smooth operation.



6 Commonly Used Ports, Satisfying Various Requirement

In addition to the ROV connection port, the remote controller is also equipped with 1 network port (used for network cable connection or connection to two remote controllers through the network port to enter the “Observer Mode”), 1 USB-C port (used to charge the remote controller), 2 USB ports (used to insert a USB flash drive and connect a mobile phone for data transmission), and 1 HDMI port (used to connect an external display screen).

Extreme Temperature Endurance

CHASING Waterproof Remote Controller with Screen maintains stable performance at -10℃ to 55℃ environment.

Intelligent and Energy-Saving

Equipped with intelligent high temperature warning interface, which will give a prompt warning if the controller is overheating in case of outdoor service to ensure the best user experience. You can choose the energy-saving mode, the controller will automatically shut down after 5 minutes of standby.



Ultra-Long Battery Life

CHASING Waterproof Remote Controller with Screen, has a built-in 7000mAh battery, can work continuously for about 5 hours at 20℃-25℃ at full load.



3 Modes of Connection, Multiple Entertainment Function

The remote controller supports three connection methods: WIFI, external mobile network card and wired network. It can not only complete work tasks, but also can be used as a tablet computer – listening to music, watching movies, etc., without interference from complex signal environments, and keeping the transmitted data confidential.



In the box



Specifications

External Dimension : 292×156×79mm (without light shield)
Total Weight : 1.3kg
Display : 7.02 inches, 700cd/m², 1920×1200
Touch Screen : 5-point industrial touch
I/O Interface : USB2.0×2, Ethernet port, Type-C, HDMI, ROV port
Remote-control Lever, Key Type and Quantity : Single-shaft leverx3, dual-shaft hall control stickx2, key switchx6
Applicable Adapter Specification, Output: 5.0V 3.0A 15.0W/9V 3A/15V 3A/20.0V 3.25A
