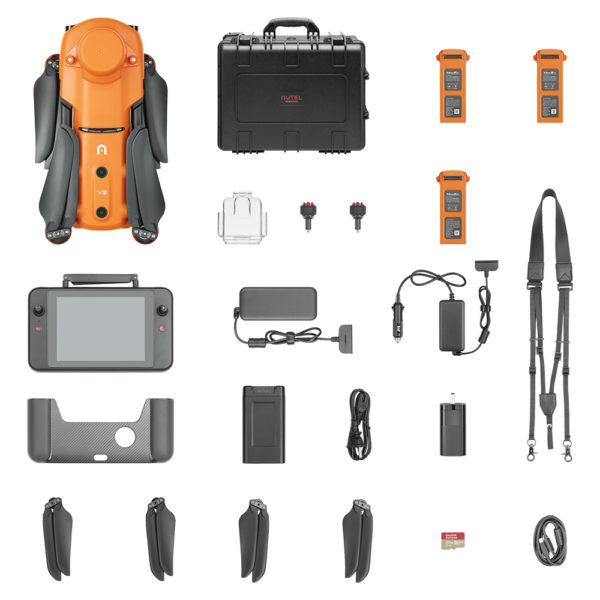

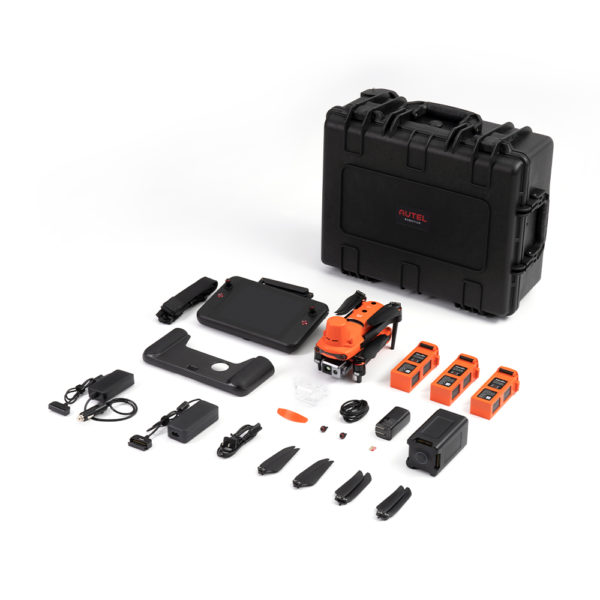

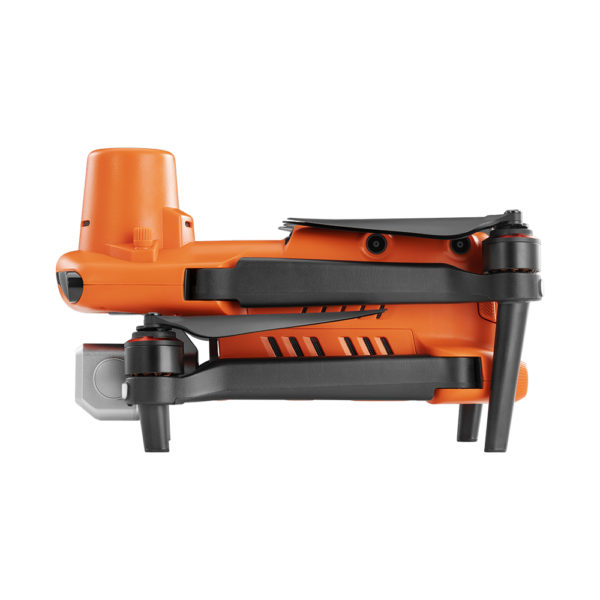

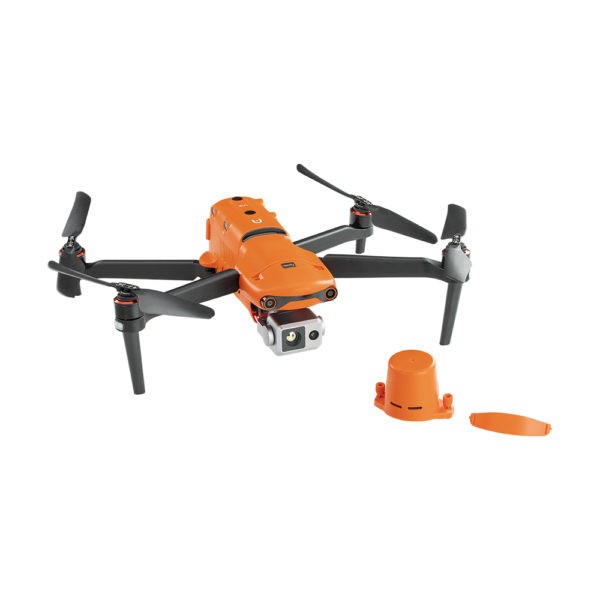

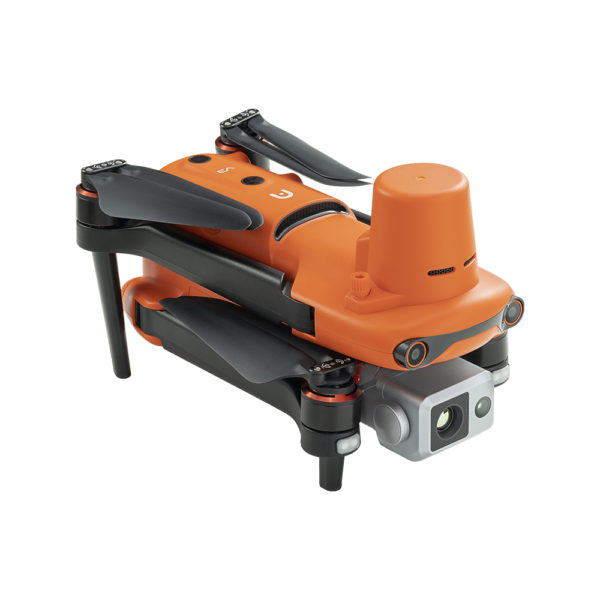

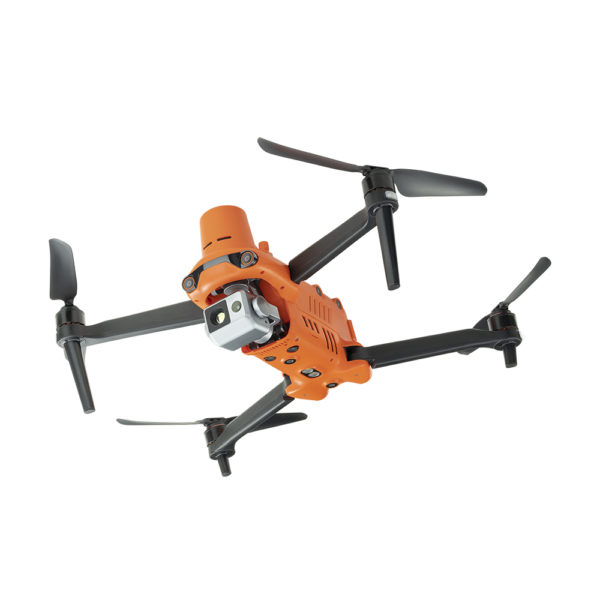

Evo II Dual 640T RTK Rugged Bundle – V3
- 640×512 30Hz New Thermal Imaging Sensor
- Detection, Recognition and Identification Ranges
- Multiple Temperature Measurement Modes
- 10 Thermal Color Palettes
- Picture-in-Picture Display Mode
- Powerful Infrared Thermal Analysis Tool
- Smart Controller Features
- Simplicity, Clarity, Control
- 15km Transmission Range
- Maximum 2000nit Brightness
- 4.5 Operating Hour
- Reviews (0)

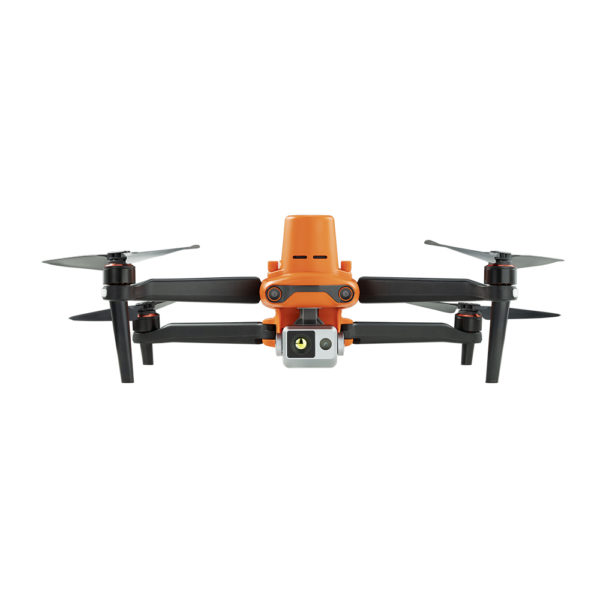

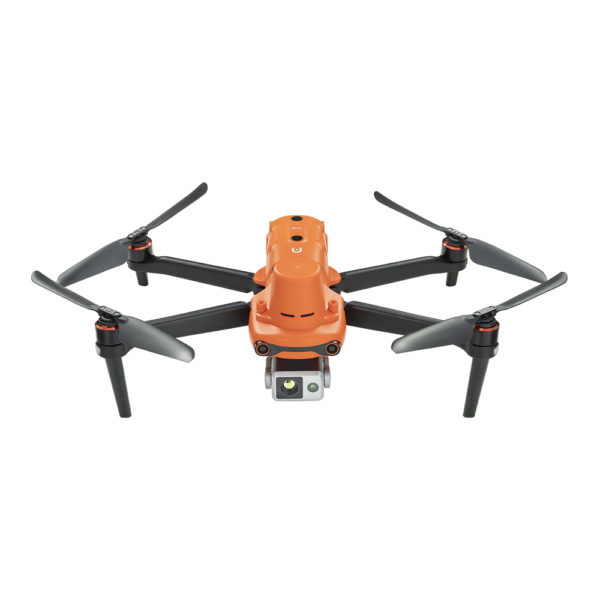

– Evo II V3 Dual 640T RTK Drone –

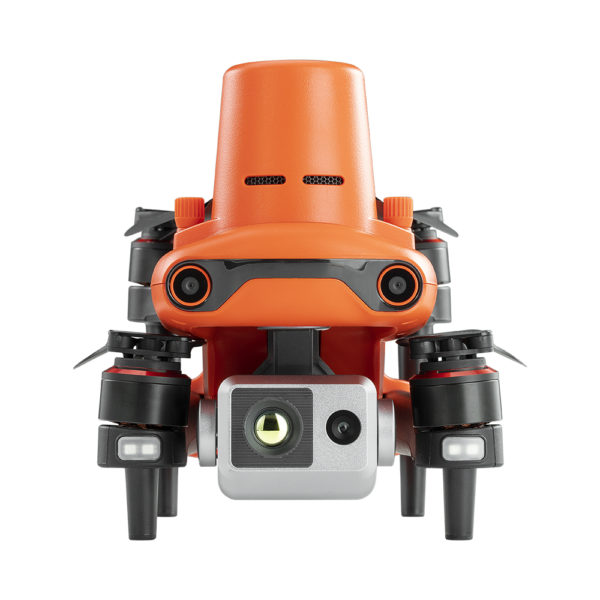

640×512 30Hz New Thermal Imaging Sensor
Equipped with 640×512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
– DRI Ranges –
DRI stands for Detection, Recognition and Identification.
• Detection: Detect if an object is present
• Recognition: See what type of object it is (i.e. person, vehicle, airplane)
• Identification: For example see if someone is a friend or foe
– Multiple Temperature Measurement Modes –
Central temperature measurement
View real-time display of the temperature in the center area of the screen.
Spot temperature measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional temperature measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold.
Set a temperature range and the system will detect any objects within the temperature range specified.
Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation | Heat Detection
Picture-in-Picture Display Mode
Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.
Powerful Infrared Thermal Analysis Tool
IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.
50MP Ultra-Sensitive Camera
The EVO II Dual 640T V3’s special RYYB sensor features an moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis.
.8″ Sensor Size
The EVO II Dual 640T V3’s .8″ RYYB CMOS offers up to 144%-233% more surface area when compared to 1/2″ or 1/2.3″ competitors for maximum details in high contrast lighting conditions.
RYYB Sensor Technology
RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
PDAF+CDAF Autofocus System
Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
See the Scene with 16x Digital Zoom
The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely and without detection.
4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
SkyLink 2.0 VideoTransmission
EVO II Dual 640T V3 is upgraded with Autel’s all new SkyLink 2.0 Video Transmission technology
Fly farther with HD video transmission up to 15km.
Obtain critical details with QHD video within 1km.
Support tri-band communication and can automatically frequency hop for maximum anti-interference capability.
360 Degree Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
– Practical and Convenience Features –
EVO II Dual 640T V3 takes 45 seconds from launch to takeoff without fuss.
No Forced Updates
EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.
No Fly Zones
EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.
More export freedoms as the EVO II Dual 640T V3 is not under US’s International Traffic in Arms Regulations.
Industry Leading Performance
• Maximum Flight Time: 38 minutes
• Maximum Transmission Range: 9.3 miles (15km)
• Maximum Wind Resistance: 39 mph (17m/s)
• Maximum Flight Speed: 45 mph (20m/s)
• Maximum lift capability: 2lbs (920g)
Broadcast with Live Deck 2
Broadcast live mission intel to other personel in the operation for enhanced situational awareness and critical decision making. The EVO II Enterprise V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.
• 1080P/60FPS Video Stream
• Three Auto-Switch Bands
• 12KM Transmission Range
• IP43 Resistance
– Application –
Reduce costs, increase safety, and improve inspection workflow.
Locate hotspots, provide overwatch, and shorten response times.
Perform overwatch, conduct forensics, accident reconstruction and crowd monitoring.
Search & Rescue
Identify subjects, reduce response times, and optimize search area with mission planning.
Inspect plants more efficiently while improving work safety and lowering costs.
Streamline the inspection process, discover defects or faulty hardware using the thermal payload

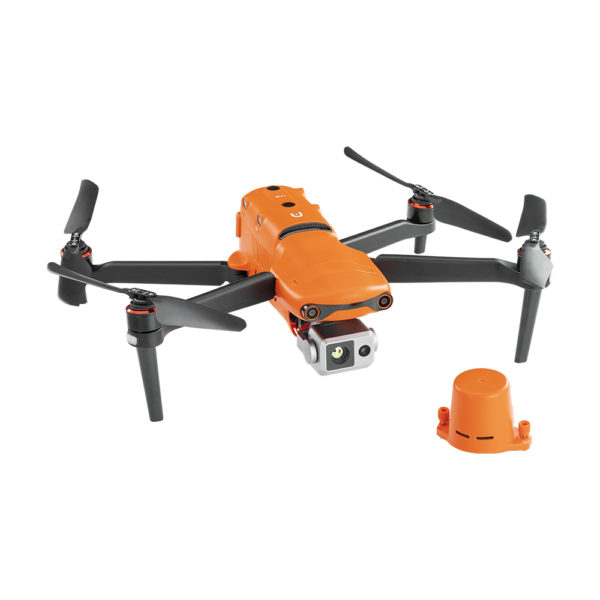

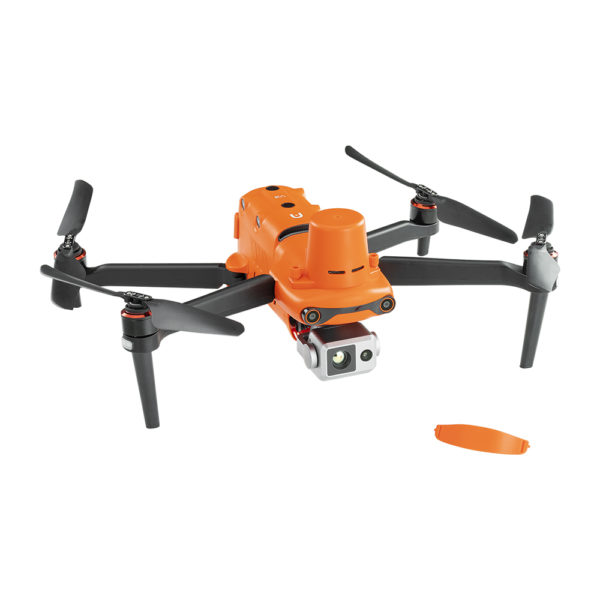

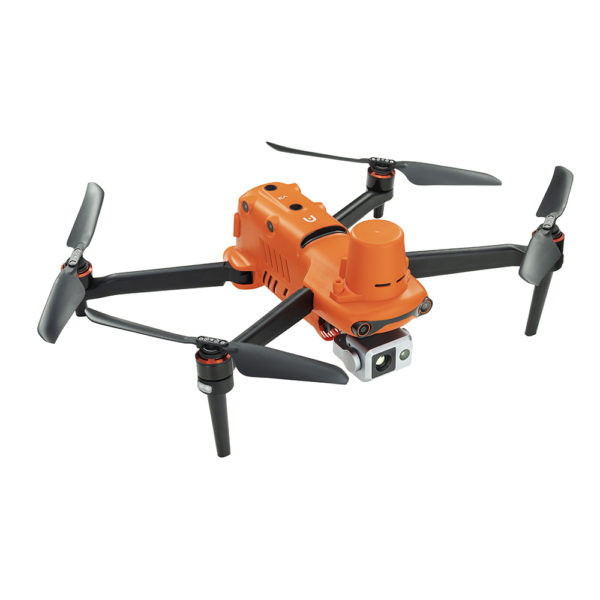

Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
– Smart Controller –
Portable, Efficient, and Easy to Use
2000nit Super-Bright Screen
The built-in display is twice as bright as the next leading competitor and 4 times brighter than a conventional cell phone screen. The 7.9-inch QHD display offers anti-glare coatings and provides clear visibility under direct sunlight.
20-40 Degree C Working Temperature
Bigger heatsinks allow the Smart Controller to operate with a wider temperature range, giving you a more stable, reliable operation in extreme environments without overheating or freezing.
4.5h Ultra-Long Battery Life
The 5800mAh Lithium-ion battery within lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to met your demands in aerial operation for those long days out in the field.
Customized OS System
The Smart Controller runs on a customized Android system and supports additional flexibility for third party system workflow by allowing users to download additional third party apps and can allows users create their own exclusive operating system.
The Qualcomm 8-core processor can smoothly play 4K/60fps H.264 and 4K/60fps H.265 video.
Supersharp, High Brightness Display
Smart Controller V3’s built in display at 2000nit is 4 times brighter than a conventional cell phone screen and the 7.9 inch Ultra-HD (2048×1536) touch screen provides clear visibility under direct sunlight. Intergrated true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for the pilot in any lighting enviroment.
SkyLink 2.0 Video Transmission
Smart Controller V3 supports 2.4GHz/5.8GHz/900MHz tri-band communication and can automatically frequency hop for maximum anti-interference capability. 2.7K 30p video resolution is available within 1km and 1080p HD image comes standard between its 1km- 15km transmission range.
• 15km Transmission Range
Extensive Battery Life
The 5800mAh lithium battery guarantees 4.5 hours of continuous work, and can be fully charged in 2 hours.
Sleek and Portable
The Smart Controller weighs 1150g and comes with removable Command sticks and storage so it can be tucked into a carrying bag with ease.
Premium Material, Rugged Design
The back of the controller is made from reinforced composites and is 3D laser engraved for improved ergonomics, grip, and durability.
HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allows the antennas to be detachable and replaced or upgraded with SMA compatible third party devices.
