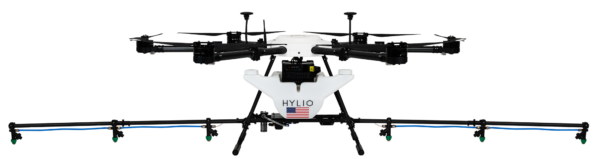

AG-116

-

  • 4.5 gallon tank
  • Approx. 20 acres/hour at a 1GPA rate
  • Standard take-off weight: 86.7 lbs
  • Four 44.4V LiPo batteries
  • Two intelligent LiPo chargers
  • Mid-sized model
Availability: Available on backorder Categories: ,

Description

Flight Parameters

  • Total Weight (without batteries): 35.5 lb
  • Max Takeoff Weight: 105 lb
  • Max Operating Speed: 22 mph
  • Max Flight Speed: 40 mph
  • Hover Time: 65 min (at 49.3 lb TO weight) – 14 min (at 84.3 lb TO weight)

Propulsion System

  • Motor: KV 100 rpm/V
  • Foldable Propeller: 30×9.0 in
  • Configuration: Hexacopter
  • Operating Voltage: 12s
  • Battery 1 x 12S (44.4V) 22000 mAh LiPo Battery – 13.47 kg/battery

Aircraft Frame

  • Wheelbase: 67 in
  • Material: Carbon Fiber, Aluminum, Plastic
  • Dimensions: 67x59x24 in (arms unfolded, no propellers) – 35x42x24 in (arms folded, no propellers)

Spray System

  • Standard Payload: 37 lb, 4.2 gallons
  • Sprayer Configuration: 6 nozzles on 8-foot boom
  • Nozzle: Nozzle body compatible with any Teejet spray tip
  • Flow Rate: 0.07 – 0.65 Gal/min
  • Spray Width: 15-20 feet

Flight Control

  • Flight Modes: Fully autonomous (no RC), position hold manual (with RC)
  • Operating Frequencies: 902 – 928 MHz, 2.4 GHz
  • Ground Station Control Software: Hylio Agrosol
  • Max Transmission Range: >10 miles (unobstructed)

Additional information

Brand

Hylio
