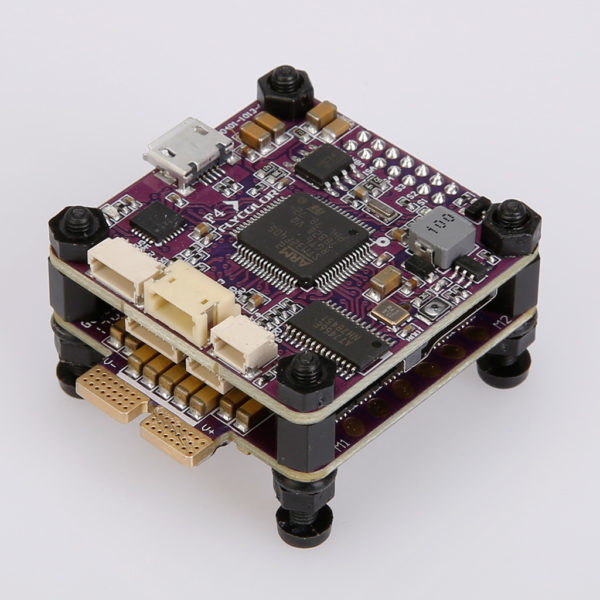

Flycolor Raptor S-TOWER Flytower F4 Flight Controller

$89.99

-

  • Pipelined 8-bit C8051 core
  • ESC maximum speed is limited to 500k eRPM.
  • Dedicated 3in1 drivers, makes the start more smooth.
  • ESC firmware: BLHeli-S, F-H-40.
SKU: 045128936282 Categories: , ,

Description

Flycolor Raptor S-TOWER Flytower F4 Flight Controller Built-in OSD 20A 4in1 ESC for RC Drone



Flycolor Raptor S-TOWER Flytower F4 Flight Controller Built-in OSD 20A Blheli_S 4in1 ESC for RC Drone

ESC
● EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency. ESC maximum speed is limited to 500k eRPM.
● Dedicated 3in1 drivers, makes the start more smooth.
● ESC firmware: BLHeli-S, F-H-40.
● Two layers tower structure between 4in1 ESC and FC, using cable for quick connection, silicon spacer for supporting could reduce the effect of vibration on Flight Controller, makes the flight more stable.
● BLHeli-S firmware. It is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
● The code supports regular 1-2ms pulse width input, as well as Oneshot125 , Oneshot42 and Multishot .
● Supports Dshot150, Dshot300 and Dshot600.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.

Flight Controller
● MCU: STM32F405.
● Gyro: MPU-6000 SPI.
● FC firmware: Betaflight_OMNIBUSF4
● Supports PPM,SBUS,SPEKTRUM1024/2048 etc. remote control / receiving mode.
● FC integrated OSD, users can adjust OSD parameters via Betaflight configurator.
● FC integrated 3.3V,5V, 12V and VBAT for receiver, VTX, camera, buzzer, LED  and other peripheral devices.

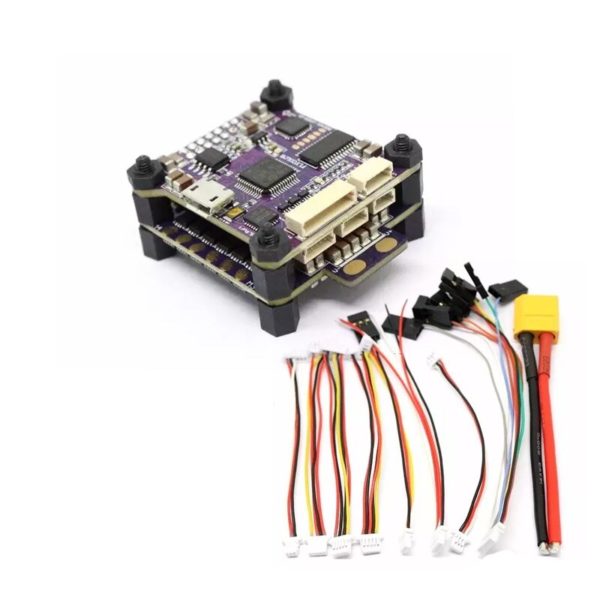

● Provided several cables for peripheral devices such as VTX, camera etc.  And will give you an unprecedented experience for assembly.
● Install holes: 20x20mm,M2.

Package Included:
1 x Raptor S-TOWER F4 20A Flytower








Additional information

Specifications

Brand name: Flycolor
Item name: Raptor S-TOWER F4 20A Flytower
Con. Current: 20A
Burst Current(10S): 30A
F.C Vout: 3.3V 5V 12V
Lipo cells: 2-4S
Weight: 14.6g
Size: 31.6×31.2x17mm
Mounting holes: 20x20mm
Typical Applications: 120-180Multi
