SPCMaker Bat78-X FPV Racing Drone

$379.99

-

  • Light, Compact racing drone for reaching new heights and seeing the world from a different perspective
Availability: In stock SKU: 451258631018 Categories: , ,

Description

F4 OSD Flight Controller AIO 20A ESC Board CPU: STM32F411CEU6 (100MHZ)

IMU: MPU6000 (SPI)

OSD: AT7456E

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor (current coefficient Amp Meter Scale: 300)

Firmware: Betaflight 4.1.2

Flight control model: MTKS/MATEKF411 (STM32F411)

Receiver support: Frsky/Futaba/Flysky/TBS Crossfire/DSMX|DSM2 receiver

Size: 31.4×31.4mm (25.5mm mounting hole)

Weight: 6.83g

Onboard 20A BLHeli_S 4in1 ESC Firmware support: BLHELI_S/JESC

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-4S Lipo

Continuous current: 20A

Peak current: 40A

Firmware version: BLHELI_S (Q_H_20)

Motor connector: 1.25mm 3P straight pin socket

1103 11000KV Brushless Motor Model: 1103 11000KV

Height: 8.5mm

Shaft: φ1.5mm

Motor mounting hole: hole pitch 9mm screw hole M2

KV: 11000KV

Input Voltage: 2-3S lithium battery

Cable length: 40mm

Weight: 3.3g

Gemfan 1636 40mm 4-Blade Propeller Brand: Gemfan

Name: 1636 40mm 1.5mm propeller

Number of blades: 4 blades

Pitch: 3.5 inches

Material: PC

Weight: 0.61g

Inner diameter of center hole: 1.5mm

Paddle diameter: 40.8mm

Center thickness: 5.2mm

Maximum width: 7.46 mm

5.8G 40CH 25-400mW VTX Brand: SPCMAKER

Model: NANO VTX V1.0

Video format: NTSC / PAL

Power: 25/100/200/400mW

Control mode: Betaflight OSD control (RX)/button

Input voltage: 5V

Size: 14 x15mm

Pitch: 18 mm

Antenna: IPEX

Weight: 2g

Runcam Nano 2 700TVL Camera Brand Name: Runcam

Model: Nano 2

Image sensor: 1/3″ CMOS

Horizontal resolution: 700TVL

Lens: 2.1mm (M8) field of view 155° 1.8mm (M8) field of view 170°

Signal system: NTSC / PAL

D-WDR: Automatic

Day/night: color

Power supply: DC 3-5.5V

Current: 110mA @ 5V [email protected]

Net weight: 3.2g

Size: 14x 14x 16mm (LxWxH)

Radio Tranmitter & Receiver Brand Name: RadioLink

Product name: T8S transmitter with R8SM receiver

Weight: 142g

Colour: Black

Size: 162.5x 95.5×57 mm (transmitter)

Working voltage: 4.2V

Working current: <150 (±5) mA

Support R8EF, R8FM, R7FG, R7F, R6FG, R6F receiver

Product name: R8SM receiver

Model: R8SM

Size: 18 * 13 MM

Weight: 2g

Number of channels: 8 channels

Signal output: SBUS / PPM

Working voltage: 4.8-6V

Working current: 30mA (input voltage: 5V)

Compatible T8S / T8FB / RC6GS / RC4GS receiver

2S 7.6V 450mAh 80C Lipo Battery Model: High Energy 7.6V 450Mah 80C

Capacity: 450mAh

Quantity: 2 PCS

Size: 14x18x 62mm

Plug: XT30 plug

Continuous discharge rate: 80C

Weight: about 28g

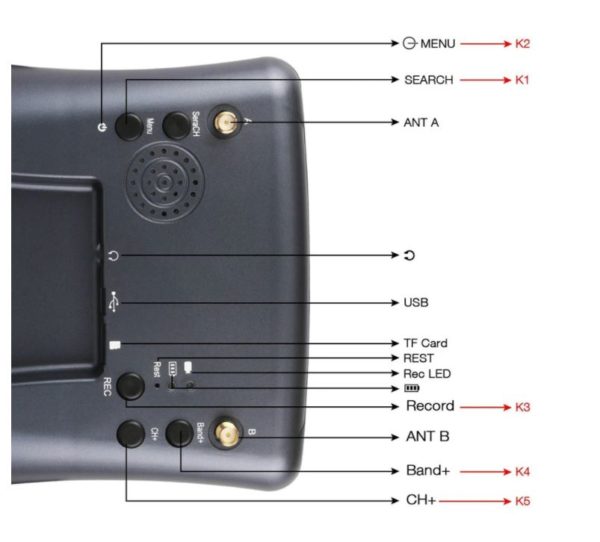

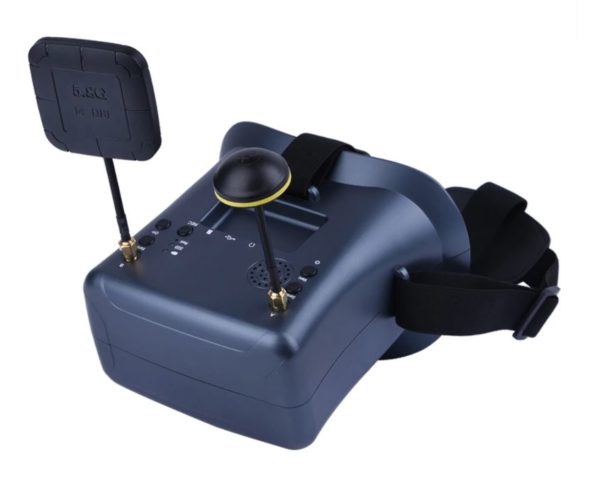

FPV Goggles Model: X1 FPV Goggles

Display size: 4.3 (inches)

Video input: NTSC

Media formats: jpg, png, JPEG, AVI, MOV, etc.

Resolution: 800 * 480px

Screen size: 4.3 inches

Memory: 32G expansion

Battery: 3.7V 2000mah (built-in)

Material: plastic (black)

Additional function: USB charging

Wearing method: head wear

Product weight: 314g

Size: 113mm * 155mm * 144mm

SKYRC E3AC Charger Model: SKYRC E3AC charger

AC input: 100-240VC, 50-60Hz

Battery type: LiPo

Number of batteries: 2-3S

Charging current: 1.2A maximum

Battery termination voltage: 4.2V±0.02V

Circuit power: 11W±10%

Size: 88x57x35mm

Weight: 103g



Additional information

Specifications

– Brand Name: SPCMaker
– Model: Bat78-S
– Item Name: 78mm F4 2S Whoop FPV Racing Drone
– Version: RTF
– Wheelbase: 78mm
– Product Size: 107x95x35mm
– Weight: 53g (without battery)
– Packing: portable storage handbag
– Packing Size: 300x265x125mm

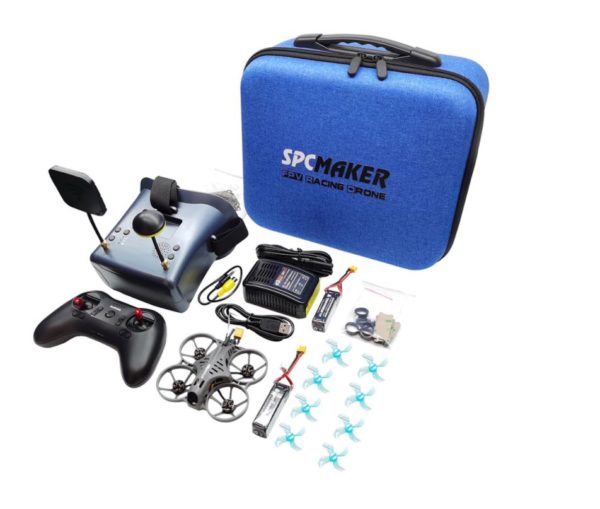

In The Box

– 1x Bat78 Whoop Drone
– 8x GEMFAN 1636 40MM 4CW+4CCW propeller
– 1x T8S+R8SM Remote Control
– 1x FPV Goggles
– 1x E3AC (2-3S) charger
– 2x  2s 450mAh 80c lithium battery
– 1x USB tuning parameter connection data cable

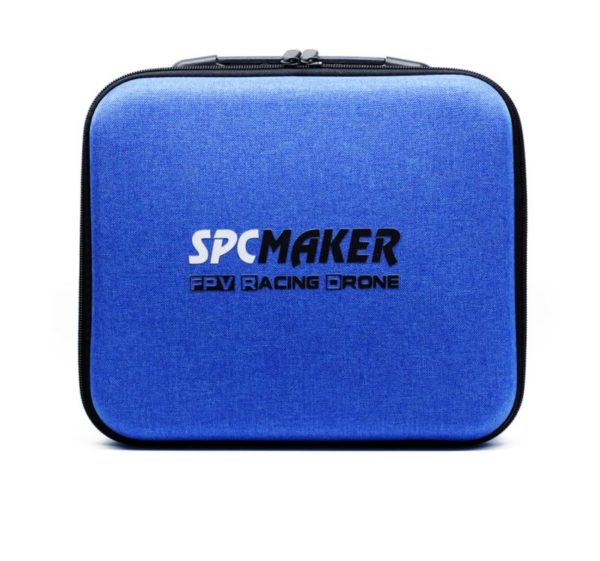

– 1x Storage handbag
