Feichao F411 2S-6S 35A Flight Controller

$64.99

-

  • High-end 8-layer 2 oZ thick copper skin
  • Imported 30V high current resistance mos
Availability: In stock (can be backordered) SKU: 04512893633 Categories: , ,

Description

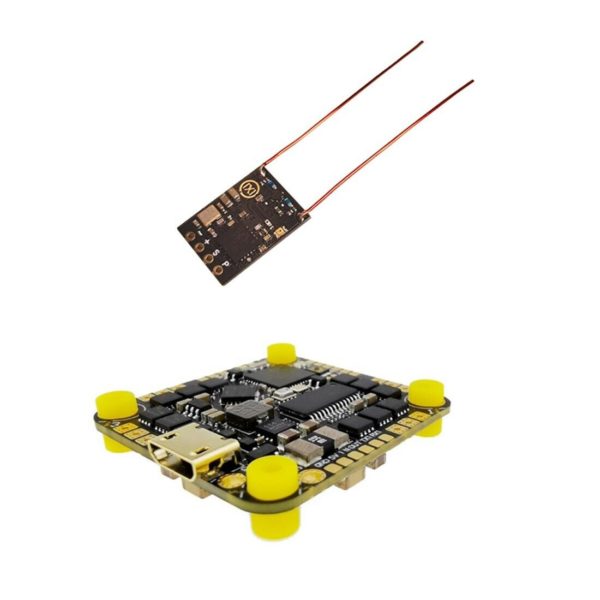

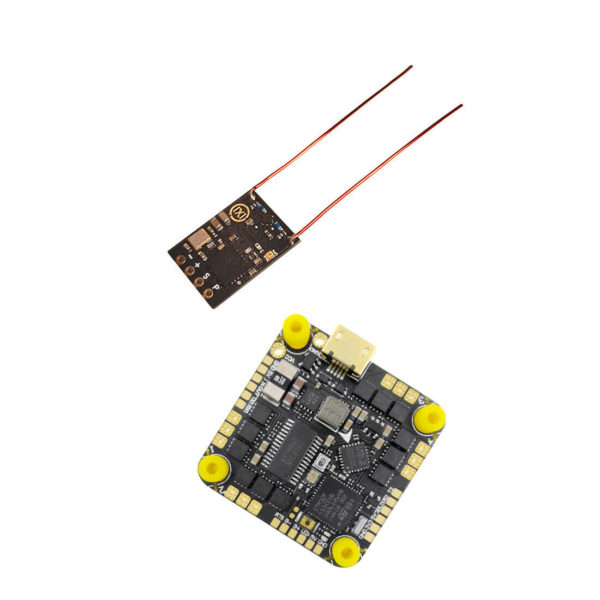

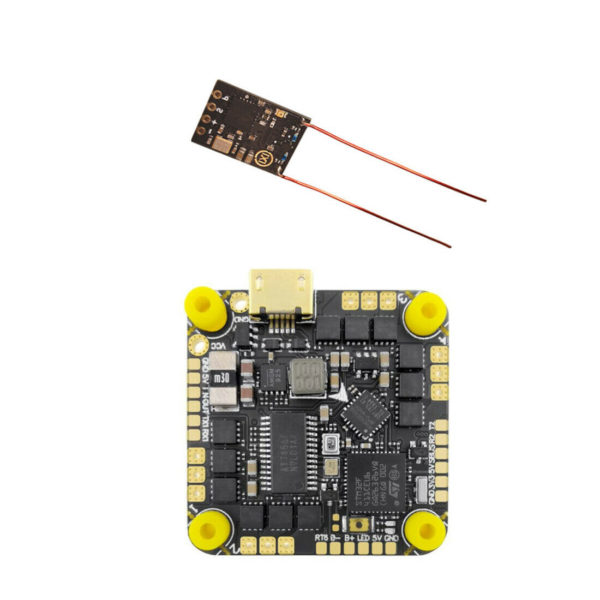

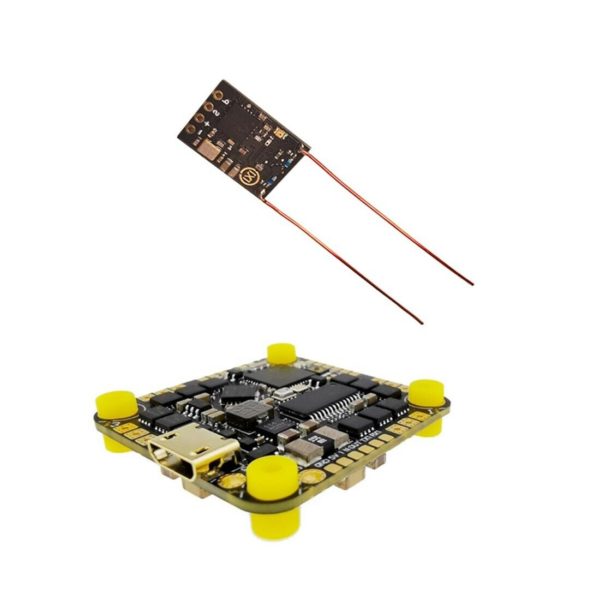

FEICHAO F411 20A/35A 2S-6S Flight Controller + XR502 Series Receiver 2.4G Dual Antenna for Frsky

  • The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.
  • MOS adopts imported 30V high current resistance mos, long life and strong load capacity.
  • Using industrial grade LDO and high-quality Japanese Murata capacitors, high temperature resistance and strong filtering performance.
  • Note: 20A for 2S-5S, 35A for 2S-6S ; LED: Support WS2812 and other programmable
  • Support : for Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X: DSM-2 Receiver , PWM / Oneshot125 / Oneshot42 / Multishot / Dshot150 / Dshot300 / Dshot600 Protocol

ESC parameters:
Firmware support: BLHELI_ S
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Note: 20A for 2S-5S, 35A for 2S-6S
Continuous current: 20A/35A (optional)
Peak current: 25A
Firmware version: BLHELI _S (G- H-30)

Flight control parameters:

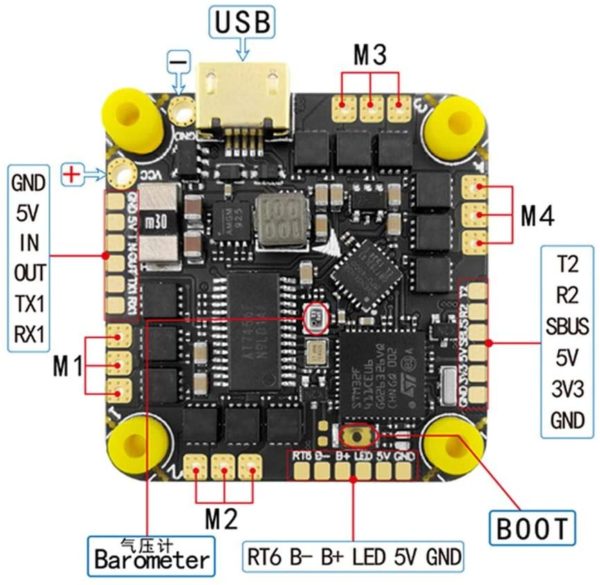

CPU: STM32F411CEU6
IMU: MPU6000
OSD: AT7456E
Barometer: BMP280
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Firmware version: betaflight_4.1.1_MATEKF411
Size: 31* 31mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
